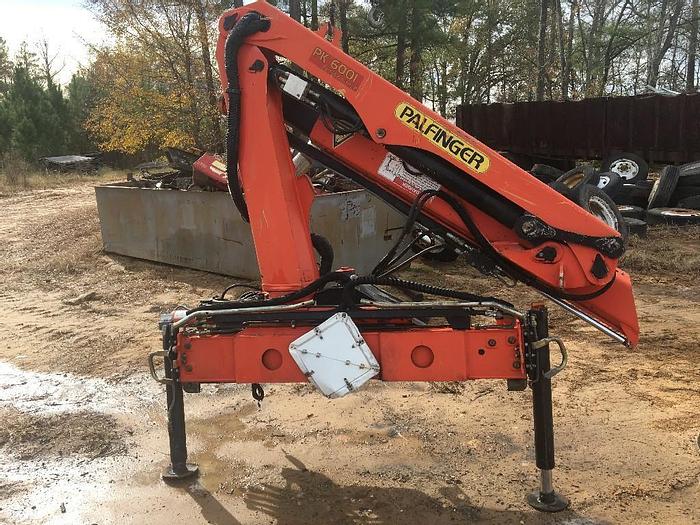

PK 6001 Performance Technical Specifications (EN 12999 H1-B3) Max. lifting moment 5.4 mt/53.0 kNm 39080 ft.lbs Max. lifting capacity 3300 kg/32.4 kN 7280 lbs Max. hydraulic outreach 11.2 m 36? 9?? Max. manual outreach 12.9 m 42? 4?? Slewing ...

$6,500 (USD)

Oil City, LA

orCall 318-995-6341

Description

PK 6001 Performance Technical Specifications (EN 12999 H1-B3) Max. lifting moment 5.4 mt/53.0 kNm 39080 ft.lbs Max. lifting capacity 3300 kg/32.4 kN 7280 lbs Max. hydraulic outreach 11.2 m 36? 9?? Max. manual outreach 12.9 m 42? 4?? Slewing angle 400? PALFINGER QUALITY THAT SPEAKS FOR ITSELF PK 6001 Performance Standard crane Slewing torque 0.7 mt/6.9 kNm 5090 ft.lbs Outreach 5.4 m 17? 9?? Stabilizer spread standard 3.0 m 9? 10?? Stabilizer spread max. 5.0 m 16? 3?? Fitting space required 0.63 m 2? 1?? Width folded 2.2 m 7? 3?? Max. operating pressure 300 bar 4350 psi Recommended pump capacity from 4.4 imp.gal./min 5.3 US gal./min to 6.6 imp.gal./min 7.9 US gal./min with radio remote control and LS-System 8.8 imp.gal./min 10.6 US gal./min Dead weight standard crane 721 kg 1590 lbs

Specifications

ConditionUsed
Serial Number134994
Serial number134994
